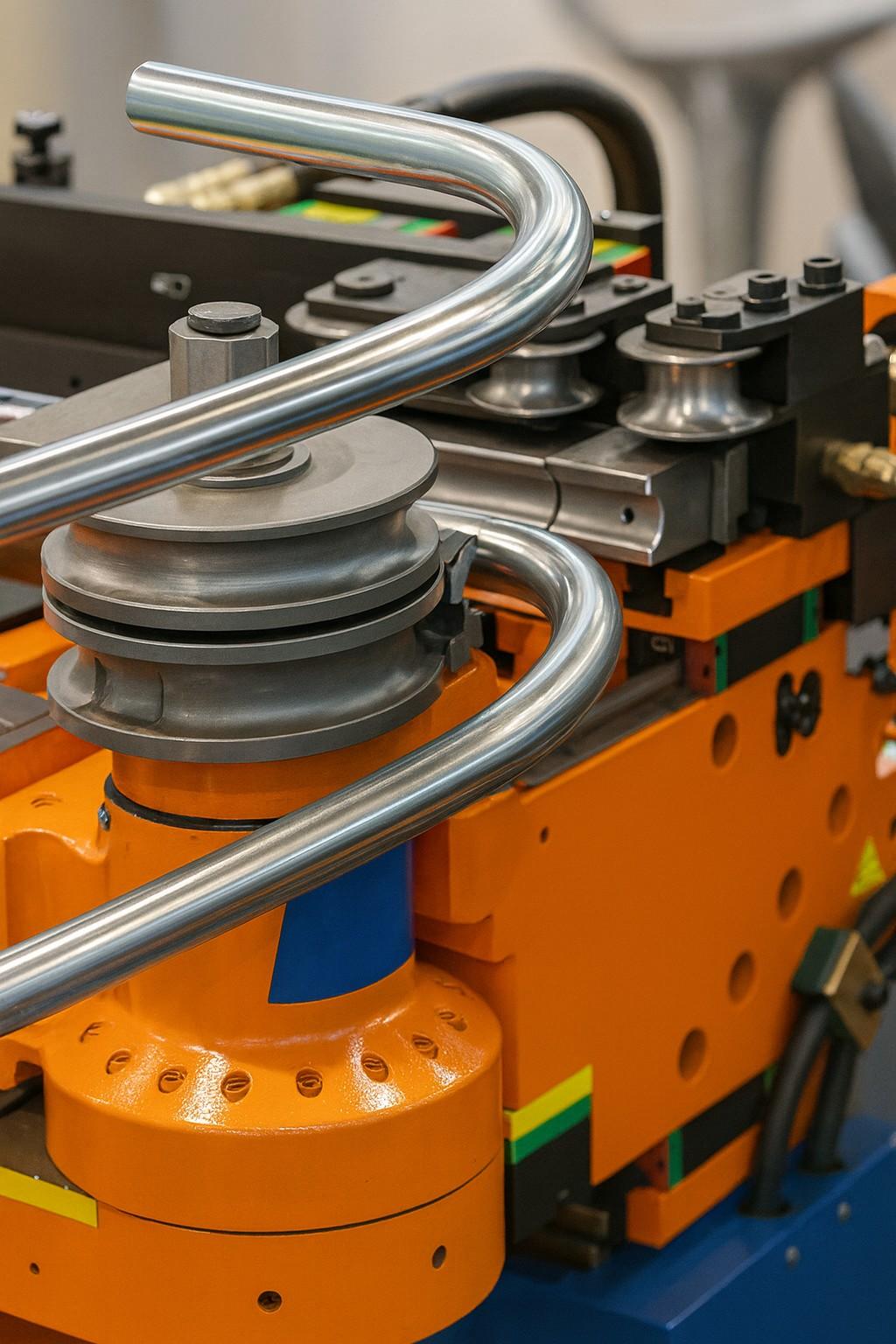

Pipe Bending Services and Job Work in Ahmedabad, India
Sharma Technocast offers pipe and tube bending job work in Ahmedabad for manufacturers, fabricators and plant builders. We bend tube and pipe from 10 mm to 300 mm on 3, 5 and 7-axis CNC machines, do cold bending with mandrels, dies and rollers, bend rods and MS bars, and make induction bends on pipe from 76 mm up to 48″ (1219 mm), including API 5L line pipe up to Grade X70. Send us a drawing or sample and we bend to it, from a single prototype to large batches. We can also weld, braze, fabricate and machine the bent parts. We are ISO 9001:2015 certified, with 15+ years of group experience.
Our Capabilities
Pipe Bending Capabilities at a Glance
CNC, cold and induction bending of tube and pipe from 10 mm up to 48″, bent to your drawing in Ahmedabad.
| Capability | Details |
|---|---|
| Bending methods | CNC tube and pipe bending, cold bending (mandrel, rotary draw, press and roll bending), rod and MS bar bending and induction bending |
| CNC machines | 3-axis, 5-axis and 7-axis hydraulic CNC benders with touchscreen HMI |
| Tube and pipe size | 10–300 mm OD on CNC; 76 mm up to 48″ (1219 mm) by induction |
| Bend radius | Tight bends below 1.5D on CNC; 1.5D to 5D by induction |
| Wall thickness (induction) | Up to 25 mm on smaller pipe; 6–20 mm on large pipe |
| Bend angle and length | 20°–180° elbows and U-bends on large pipe; pipe up to 12 m long |
| Bend shapes | Single bends, 3D multi-plane bends, U-bends, offsets and rolled arcs |

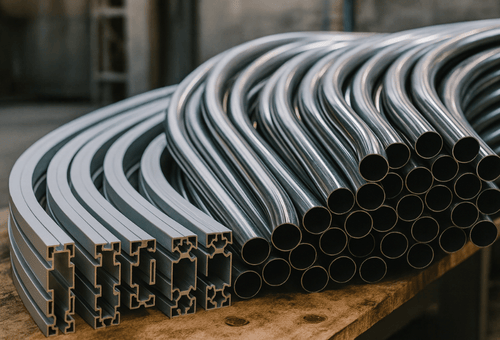

| Materials | Mild steel, carbon steel, alloy steel, stainless steel, aluminium, copper and titanium; API 5L line pipe up to Grade X70 |
| Order size | From one prototype to bulk production |

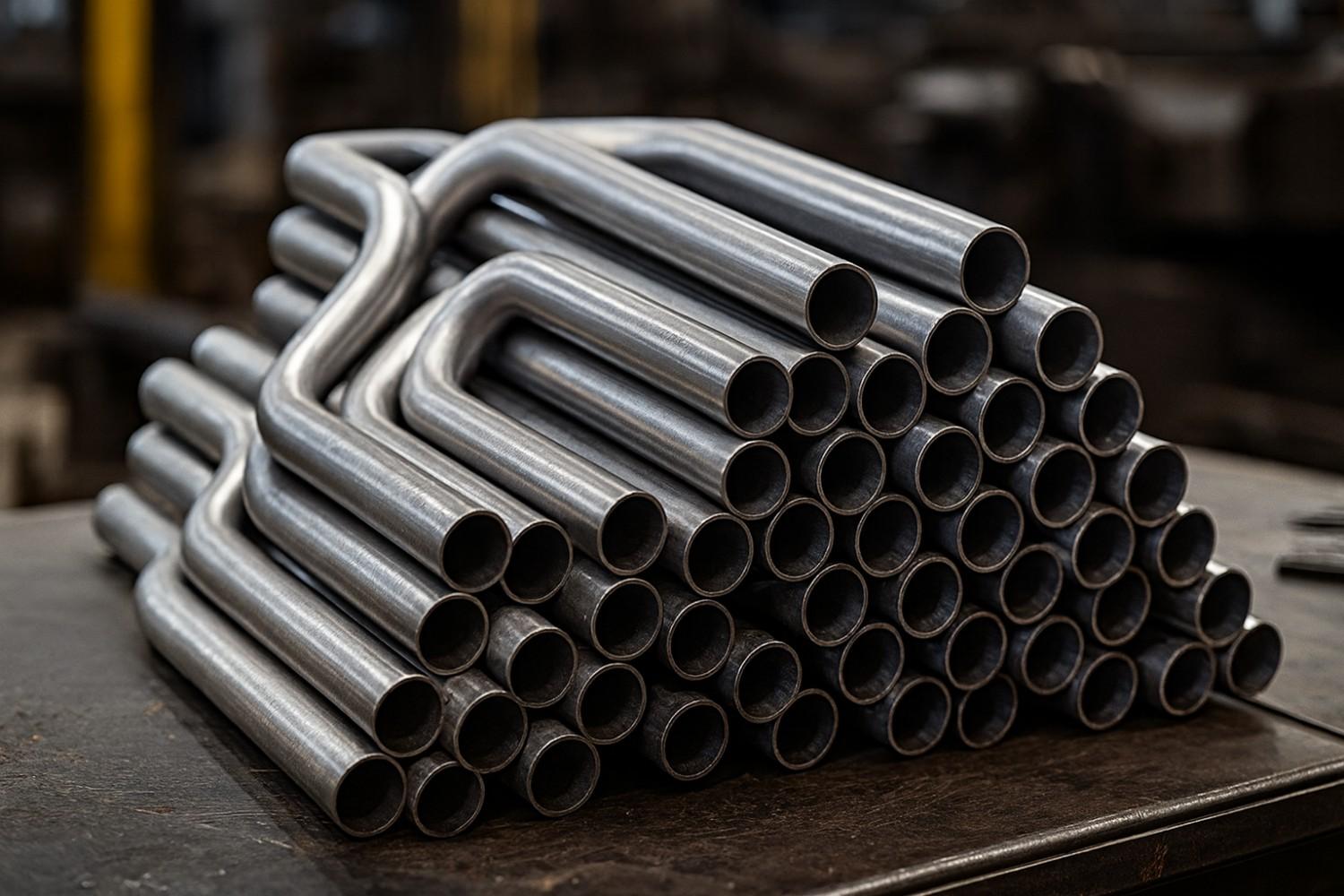

| After bending | Welding, brazing (including induction brazing), fabrication and machining |
| Small bent parts | U-bolts, seat frames, wire frames, banjo parts, Teflon (PTFE) hose assemblies and sheet metal parts |
| Checks | Every batch checked against your drawing, using checking fixtures |
| Delivery | Across India and for export |
Send your drawing or sample with the quantity, and we will quote within 24–48 hours.
Get a Bending Quote
How Our Pipe Bending Job Work Runs
1. Drawing and Material Review
We study your drawing or sample, check the pipe size, wall thickness and material, and choose the bending method that holds the shape without cracking or flattening.

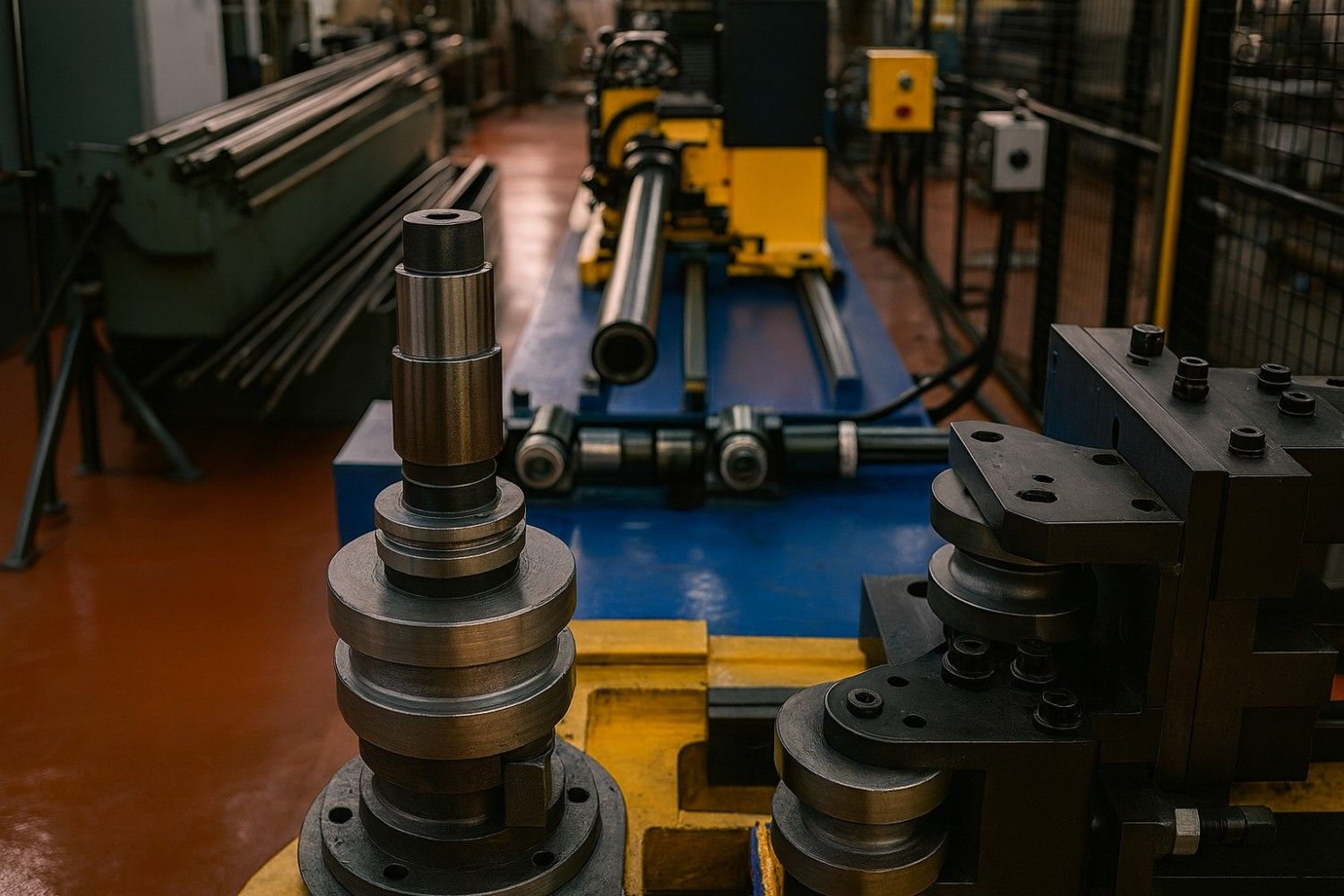

2. Machine Setup
The right dies, mandrel and clamps go on, and the bend program (angles, lengths and rotation between bends) is loaded on the CNC.

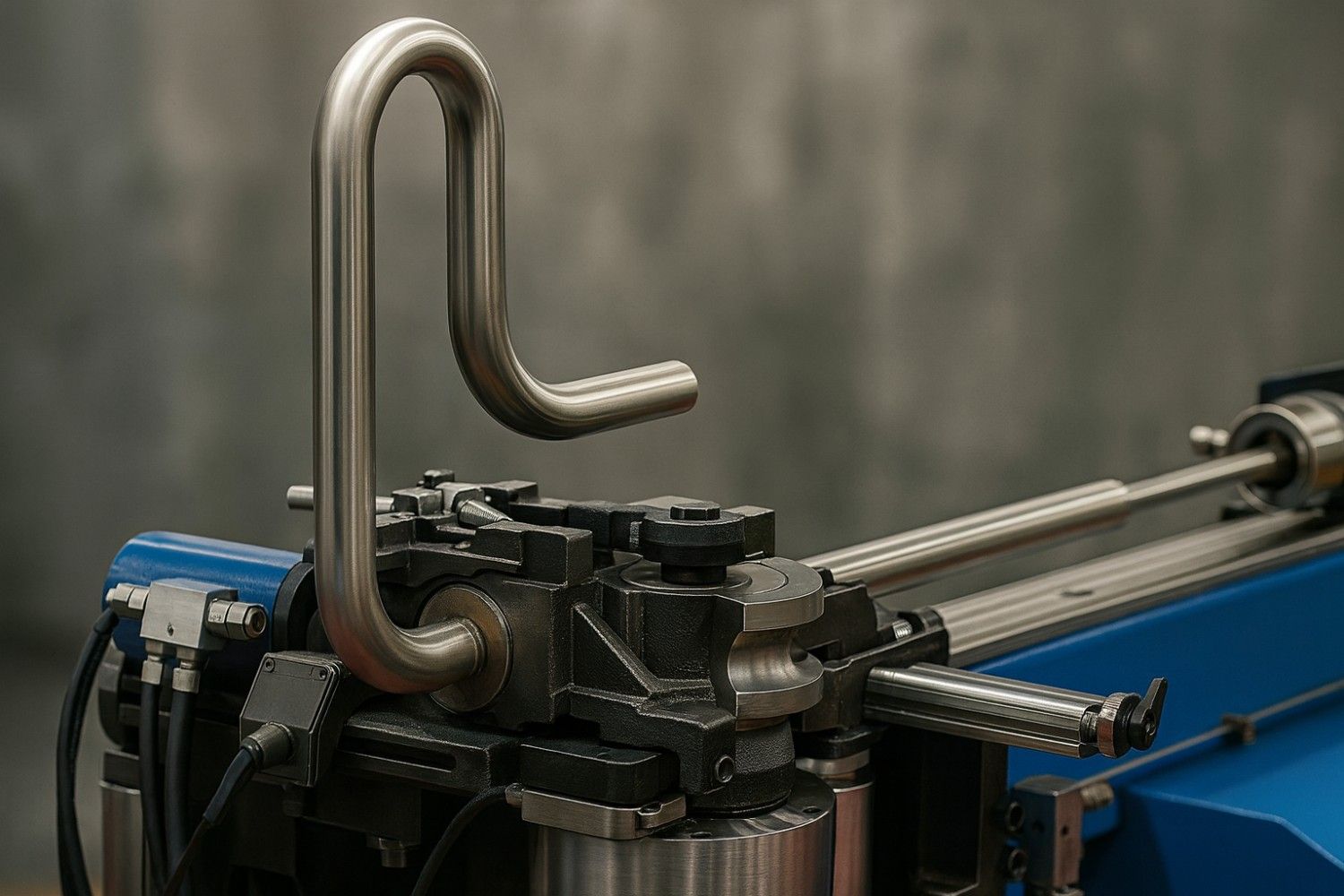

3. Bending
The machine bends each part in the same sequence, clockwise or anticlockwise, so the hundredth part matches the first.

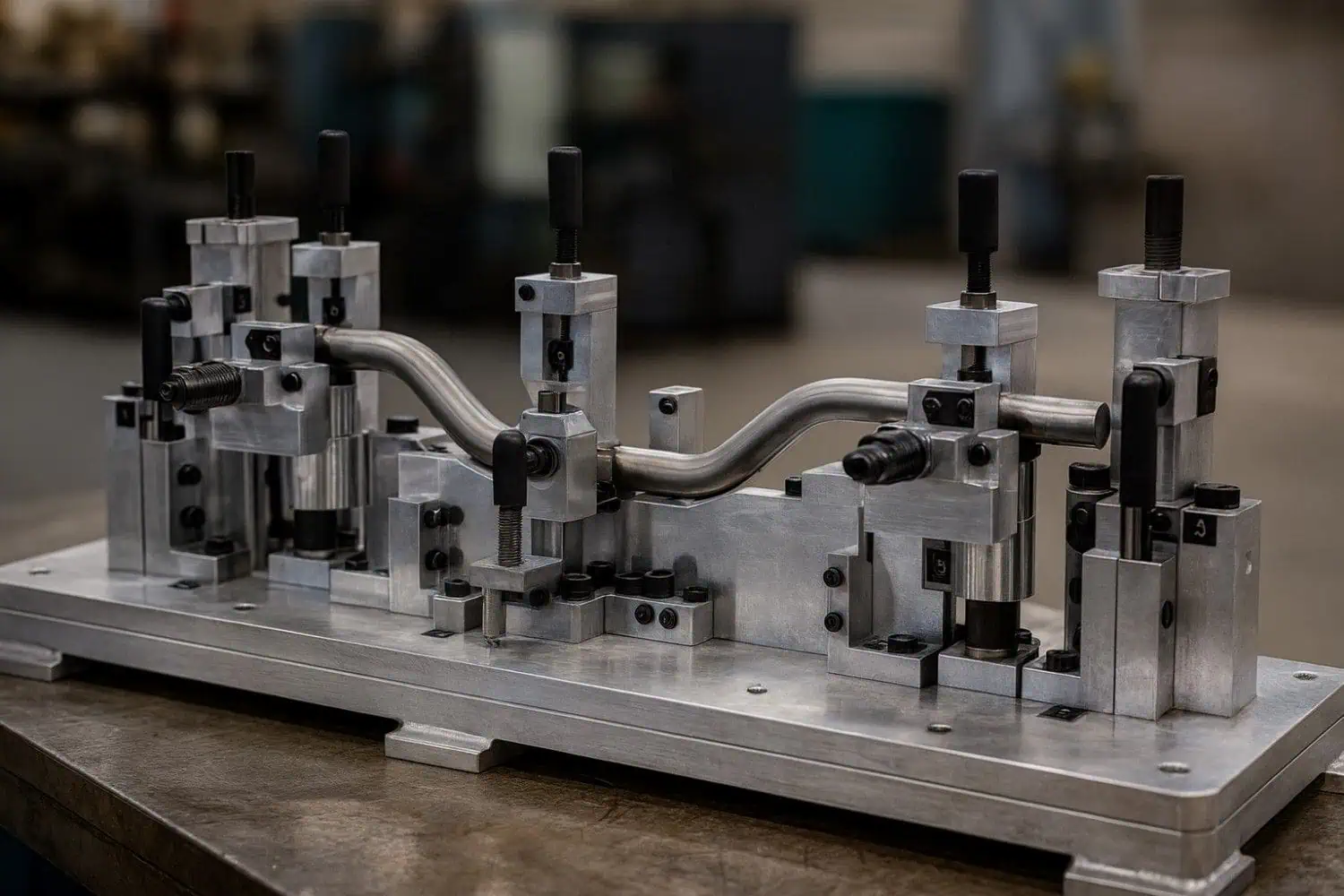

4. Inspection
Parts are checked on fixtures and against your drawing for angle, radius and length, and looked over for wrinkles or flat spots.

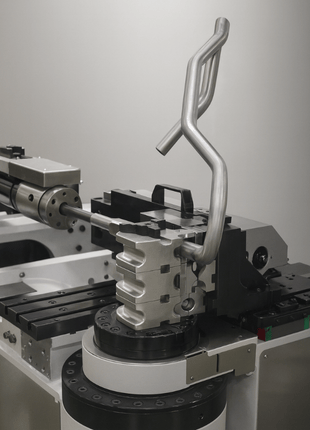

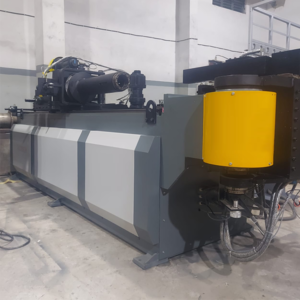

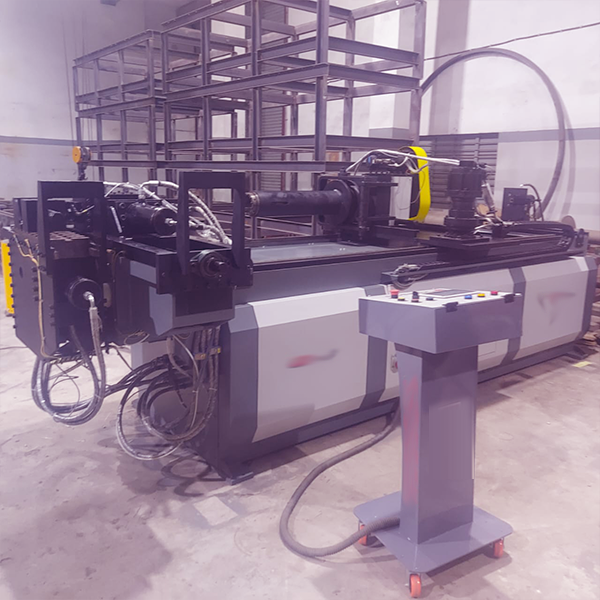

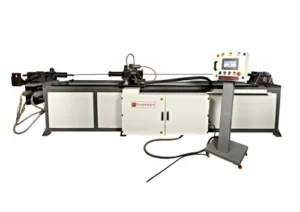

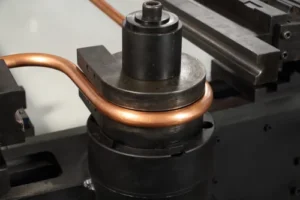

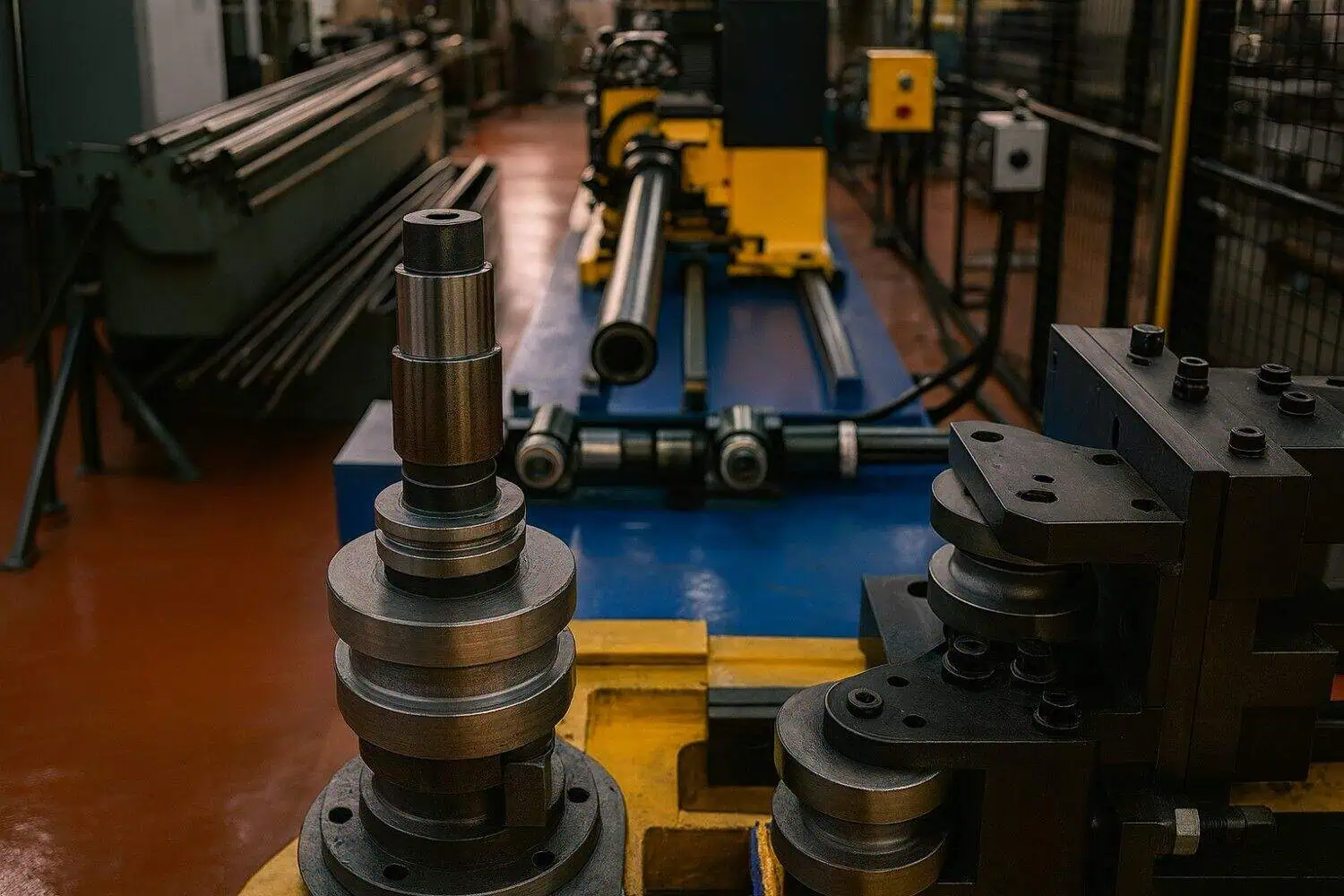

3, 5 & 7 Axis CNC Pipe Bending Machine
Our bending shop runs 3-axis, 5-axis and 7-axis CNC pipe benders with hydraulic drive and a colour touchscreen HMI. Each part’s program is saved, so repeat orders start quickly and bend the same way every time. Push bending, multi-radius tooling and an optional centre-line booster let us make tight bends below 1.5D in steel and stainless steel pipe, with little thinning or ovality. Looking to buy a machine rather than send us bending work? We also build and sell CNC pipe bending machines and induction pipe bending machines. Ask us for machine details.
Rod, Bar and Small-Part Bending
Not every job is a pipe. We also take on rod and MS bar bending and make small bent parts in batches: U-bolts, seat frames, wire frames, banjo parts, Teflon (PTFE) hose assemblies and sheet metal parts. Where a tube assembly needs a joint, we finish it with induction brazing, so you receive a complete part rather than loose pieces.

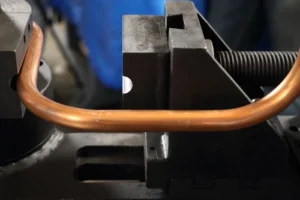

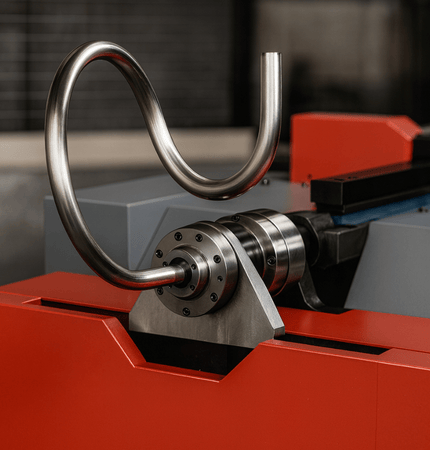

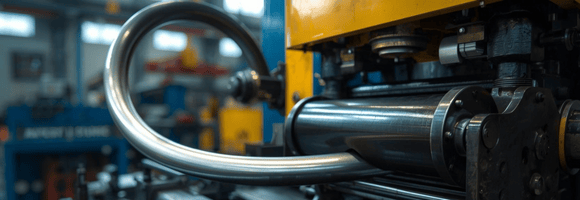

CNC Pipe Bending Capabilities
Our CNC bending in Ahmedabad covers tube and pipe from 10 mm to 300 mm OD, with the same accuracy on the first part and the last.
Key Highlights :
- Hydraulic CNC bending for even, repeatable force
- 3, 5 and 7-axis machines for flat and 3D bends
- Push bending and multi-radius tooling
- Centre-line booster for tighter radii
- 90° head rotation for multi-plane parts
- Two- and three-roller drive for heavy work
- Tight bends below 1.5D
- Saved programs for fast repeat orders
This mix of machines lets us run short prototype batches and high-volume production on the same floor, with less scrap and fewer reworks.
15+ Years
Experience
Induction and Cold Pipe Bending
For small and medium tubes, cold bending (rotary draw, mandrel, press or roll bending) gives clean bends without heating the material. For heavier pipe and long-radius bends, hot induction bending heats a narrow band of the pipe so it bends smoothly with controlled wall thinning. Our induction bends cover pipe from 76 mm up to 48″ (1219 mm), at 1.5D to 5D radius, with elbows and U-bends from 20° to 180° on large pipe, in lengths up to 12 m and API 5L line pipe up to Grade X70. Tell us the pipe size, wall, material and radius, and we will suggest the method that suits your job. We also build induction pipe bending machines for companies that want to bend in their own plant.
Custom Hydraulic Pipe Bending Services
Not every job fits a standard bend. We take on custom hydraulic pipe bending in mild steel, stainless steel, alloy steel and aluminium, from one-off fixtures to repeat production parts. Every part is bent to your drawing and checked before it leaves our shop. New to the process? Read industrial pipe bending services explained.
Industrial Pipe Bending Applications
Our bent pipes and tubes go into products and plants across these industries:

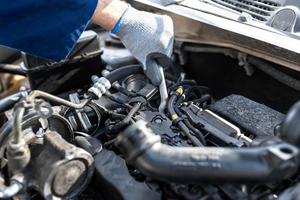

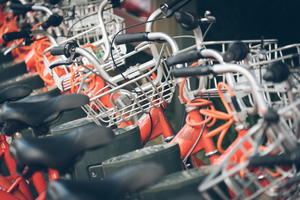

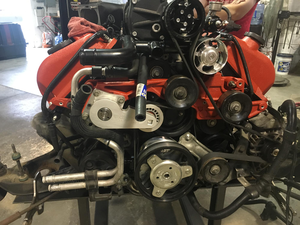

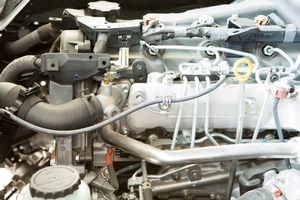

Automotive and Two-Wheelers
Frame tubes, handlebars, stands, grab rails and EV two-wheeler chassis parts, bent to the same shape on every part.

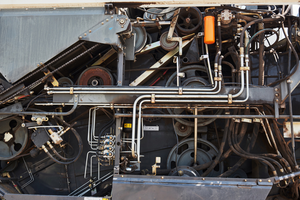

Industrial Machinery
Hydraulic lines, banjo parts, Teflon hose assemblies, fuel filler necks and machine frames, bent and finished to fit.
Agriculture and Dairy
Cow cubicles, gates and frames for farm and dairy equipment.

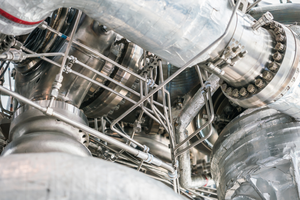

Oil, Gas and Petrochemical
Process and utility piping bends that cut the number of welded elbows in a line.
Construction and Structures
Bent tubes, bars and sections for frameworks, railings and architectural structures.
Furniture, Interiors and Prototypes
Seat frames, wire frames, furniture frames, decor pieces, and one-off prototypes or fixtures.
Why Choose Sharma Technocast as Your Pipe Bending Company?
Buyers come to us when they need bends that match the drawing every time, delivered when promised.
Pipe Bending Services FAQs
We do CNC tube and pipe bending on 3, 5 and 7-axis machines, cold bending (mandrel, rotary draw, press and roll bending), rod and MS bar bending and induction bending for heavier pipe. After bending we can also weld, braze (including induction brazing), fabricate and machine the parts, so they reach you ready to fit.
Pipe bending job work means you send us a drawing or sample and the quantity you need, and we bend the pipes or tubes to that shape. We check the parts against your drawing and deliver them, from one prototype to full production batches.
On our CNC machines we bend tube and pipe from 10 mm to 300 mm outside diameter, with tight bends below 1.5D. Our induction bending covers pipe from 76 mm up to 48″ (1219 mm), with walls up to 25 mm on smaller pipe and 6 to 20 mm on large pipe, at 1.5D to 5D radius, on pipes up to 12 m long.
CNC bending uses a programmed machine to repeat the same angles, lengths and planes on every part, which suits tubes and multi-bend parts. Cold bending shapes the pipe at room temperature with dies, a mandrel or rollers. Induction bending heats a narrow ring of the pipe and bends it while hot, which suits larger, thicker pipe and long-radius bends.
We bend mild steel, carbon steel, alloy steel, stainless steel, aluminium, copper and titanium pipes and tubes, plus API 5L line pipe up to Grade X70 by induction. If your material is not on this list, send us the grade and we will check it.
Yes. Send us your drawing or a physical sample with the bend angles, radius, lengths and material, and we bend to match it. Every batch is checked against your drawing before dispatch.

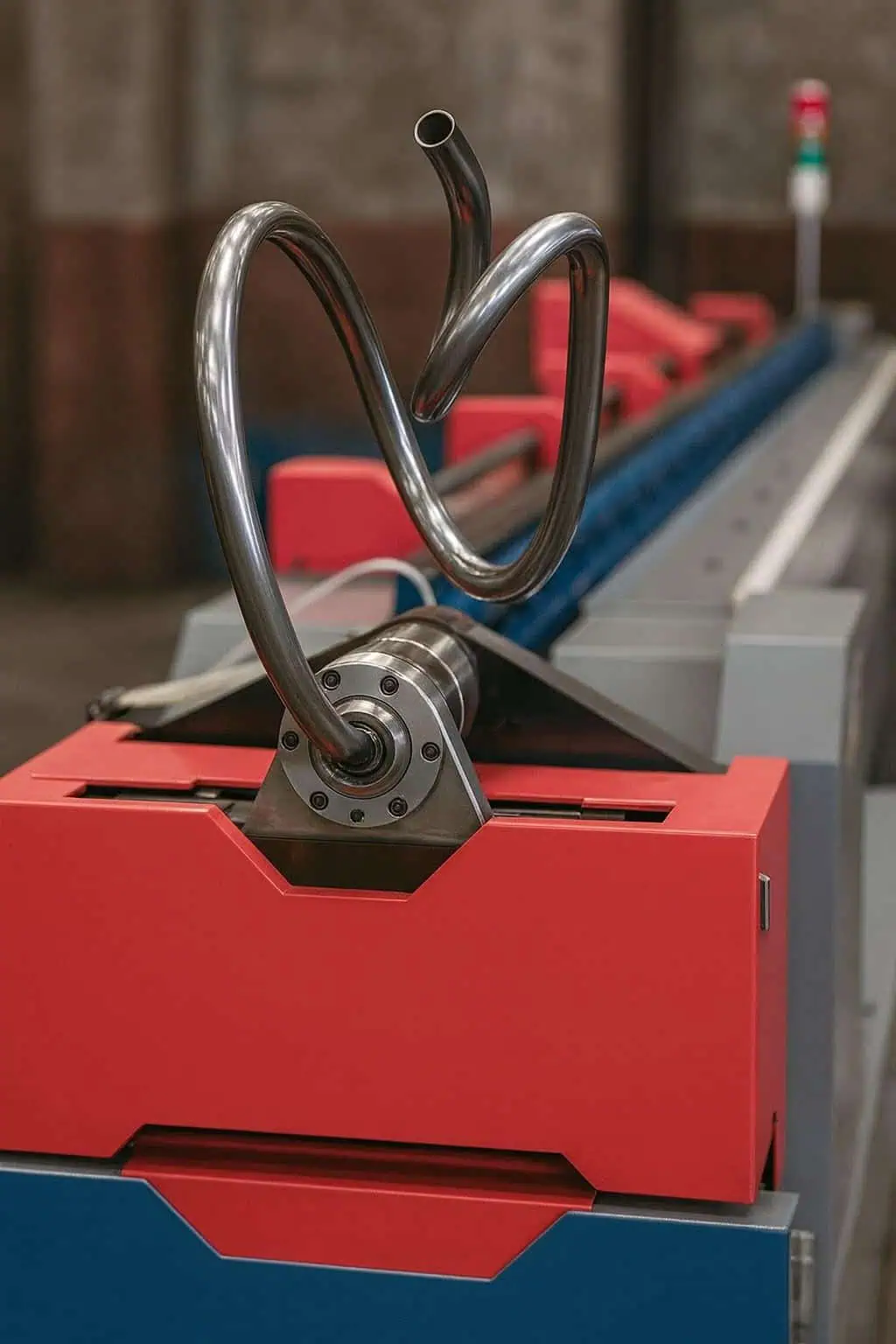

Yes. Our 5 and 7-axis CNC machines with 90° head rotation bend in several planes in one set-up, so complex shapes such as frames, handlebars and hydraulic lines come out the same from part to part.
We bend pipes and tubes for automotive and two-wheeler parts (including EV chassis parts), oil, gas and petrochemical piping, industrial machinery and hydraulic lines, agriculture and dairy equipment, construction and furniture.
It depends on the quantity, material and number of bends in each part. We give you the delivery time with our quote, after we review your drawing.
Our pipe bending work is done in Ahmedabad, Gujarat. We deliver bent and fabricated pipes across India and for export, packed for safe transport.
Yes. Along with pipe bending we make U-bolts, seat frames, wire frames, banjo parts, Teflon (PTFE) hose assemblies and sheet metal parts, and we bend rods and MS bars. Tube assemblies can be joined by induction brazing, so you get finished parts.
